TTP-244

ULTRA LOW COST
HIGH PERFORMANCE
THERMAL TRANSFER DESKTOP PRINTING




Active Image

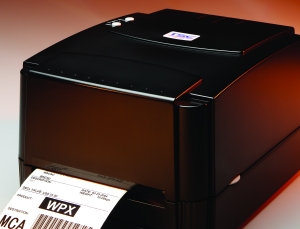

The new TSCTM TTP-244 thermal transfer bar code printer is a robust label printer. It is designed to provide labeling solutions for customer who simply needs to print labels and tags at the lowest cost.


Maximum Print Area
  • Width: 104 mm (4.09")
  • Length: 1,016 mm (40")
Memory
  • 2 MB Flash Memory
  • 2 MB DRAM memory
Resolution
  • 203 dpi (8 dots/ mm)
Dimensions
  • Width: 232 mm (9.13")
  • Height: 156mm (6.14")
  • Depth: 288 mm (11.34")
Print Speeds
  • 50.8mm, 76mm, 102mm per second (2.0, 3.0, 4.0 ips)
It re-defines low volume desktop bar code printing. With the largest media/ribbon capacities, fast print speed, and large memory capacity in its class, the TTP-244 outperforms the competition easily. These virtually trouble free units feature a standard two-year warranty. Once you plug it in, you won't have to worry about it.

The TTP-244 is based on the best selling TTP-243 platform, features such as legendary Dual-Motor design, and industrial standard media capacity. With its small, compact footprint, it is perfect for a variety of label and tag printing applications. The TTP-244 can print a wide variety of labels ranging from low volume shipping labels to compliance and general purpose product identification labels and tags.

Other applications include automobile service shops, walk-in shipping and mail centers, and inventory control for stock rooms. And with PDF417 and MaxiCode two dimensional bar code capabilities, the TTP-244 can print complex transportation formats.

The TTP-244 offers the following features:
  • 2 MB DRAM, 2MB FLASH memory
  • Dual-Motor gear driven design
  • 300 meter ribbon supply on 1" core (coated side out)
  • 4.3" OD internal media supply, optional 8.4" OD external media holder
  • 4 inches per second print speed
  • Serial & USB interfaces
  • Free bundled labeling software
Active Image

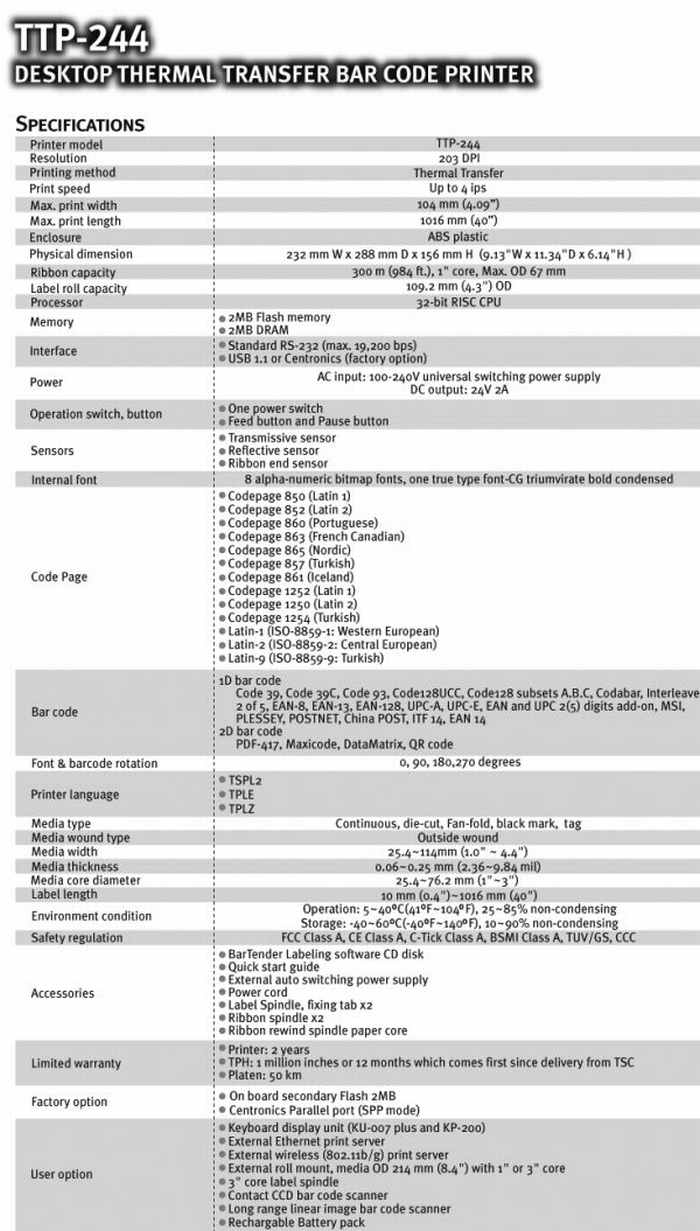

TTP-244 Product Sheet Download: Active Image
